AHP Aftercoolers

Sales, Service & Replacement

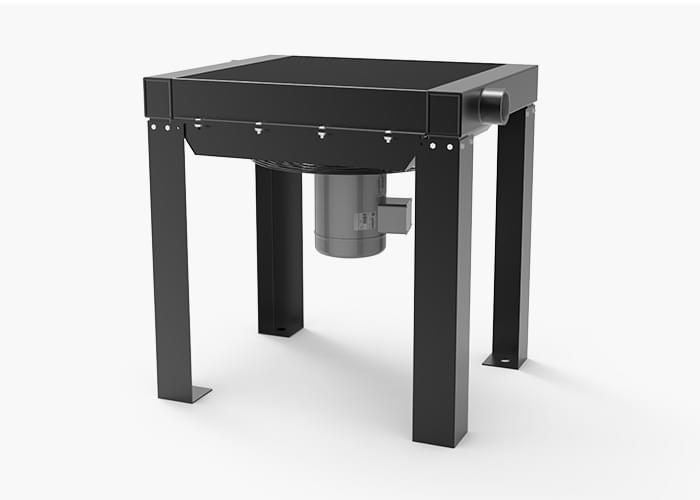

AHP Aftercooler

Features:
Full Line of sizes and Features
Brazed Bar and Plate Aluminum Core
Energy Efficient
High Performance
High Flows 400-3500 CFM
Vertical Air Flow
High Technology Compact Design
Optional Air Motor
Rugged Heavy Duty Construction
Excellent for Heat Recovery
Hydraulic motors available
Optional SAE Ports
Marine corrosion control coatings available
High performance air side
Detachable legs



Drawings & Datasheet:

Dimensions
Specifications
Adobe PDF (637 kb)


How to Order:
Call: 1-888-226-8522
Email: Sales

Typical Applications:
Rotary Screw Compressors
Piston Compressors
Centrifugal Air Compressors
Vacuum Systems
Blower Lube Oil Coolers
Compressed Air Cooling

Ratings:
Maximum Operating Pressure: 250 PSIG

Maximum Operating Temperature: 350 f

Materials of Construction:
Cabinet: Steel with Baked Enamel Finish

Core: Brazed Aluminum Bar and Plate

Fan: Aluminum Hub, Polypropylene Blades
Shroud: Painted Steel
Motor: TEFC
Fan Guard: Steel with Baked Enamel Finish

Standard Model Numbers:
AHP-400
AHP-2000
AHP-725
AHP-2500
AHP-950
AHP-3000
AHP-1200
AHP-3500
AHP-1600


AHP Aftercoolers



No Motor

1 PH Motor

3 PH Motor

Air Motor

575v Motor

  AHP-400-0
  AHP-725-0
  AHP-950-0
  AHP-1200-0
  AHP-1600-0
  AHP-2000-0
  AHP-2500-0
  AHP-3000-0
  AHP-3500-0
  AHP-400-2
  AHP-725-2
  AHP-950-2
  AHP-1200-2
  AHP-1600-2
  AHP-2000-2
  AHP-2500-2
  AHP-3000-2
  AHP-3500-2

  AHP-400-3
  AHP-725-3
  AHP-950-3
  AHP-1200-3
  AHP-1600-3
  AHP-2000-3
  AHP-2500-3
  AHP-3000-3
  AHP-3500-3

  AHP-400-5
  AHP-725-5
  AHP-950-5
  AHP-1200-5
  AHP-1600-5
  AHP-2000-5
  AHP-2500-5
  AHP-3000-5
  AHP-3500-5

  AHP-400-6
  AHP-725-6
  AHP-950-6
  AHP-1200-6
  AHP-1600-6
  AHP-2000-6
  AHP-2500-6
  AHP-3000-6
  AHP-3500-6



AHPH Aftercoolers



No Motor

1 PH Motor

3 PH Motor

Air Motor

575v Motor

  AHPH-400-0
  AHPH-725-0
  AHPH-950-0
  AHPH-1200-0
  AHPH-1600-0
  AHPH-2000-0
  AHPH-400-2
  AHPH-725-2
  AHPH-950-2
  AHPH-1200-2
  AHPH-1600-2
  AHPH-2000-2

  AHPH-400-3
  AHPH-725-3
  AHPH-950-3
  AHPH-1200-3
  AHPH-1600-3
  AHPH-2000-3

  AHPH-400-5
  AHPH-725-5
  AHPH-950-5
  AHPH-1200-5
  AHPH-1600-5
  AHPH-2000-5

  AHPH-400-6
  AHPH-725-6
  AHPH-950-6
  AHPH-1200-6
  AHPH-1600-6
  AHPH-2000-6




Quotes, Engineering & Ordering Information: Compressor Aftercoolers, please contact us: 1-805-484-2992
